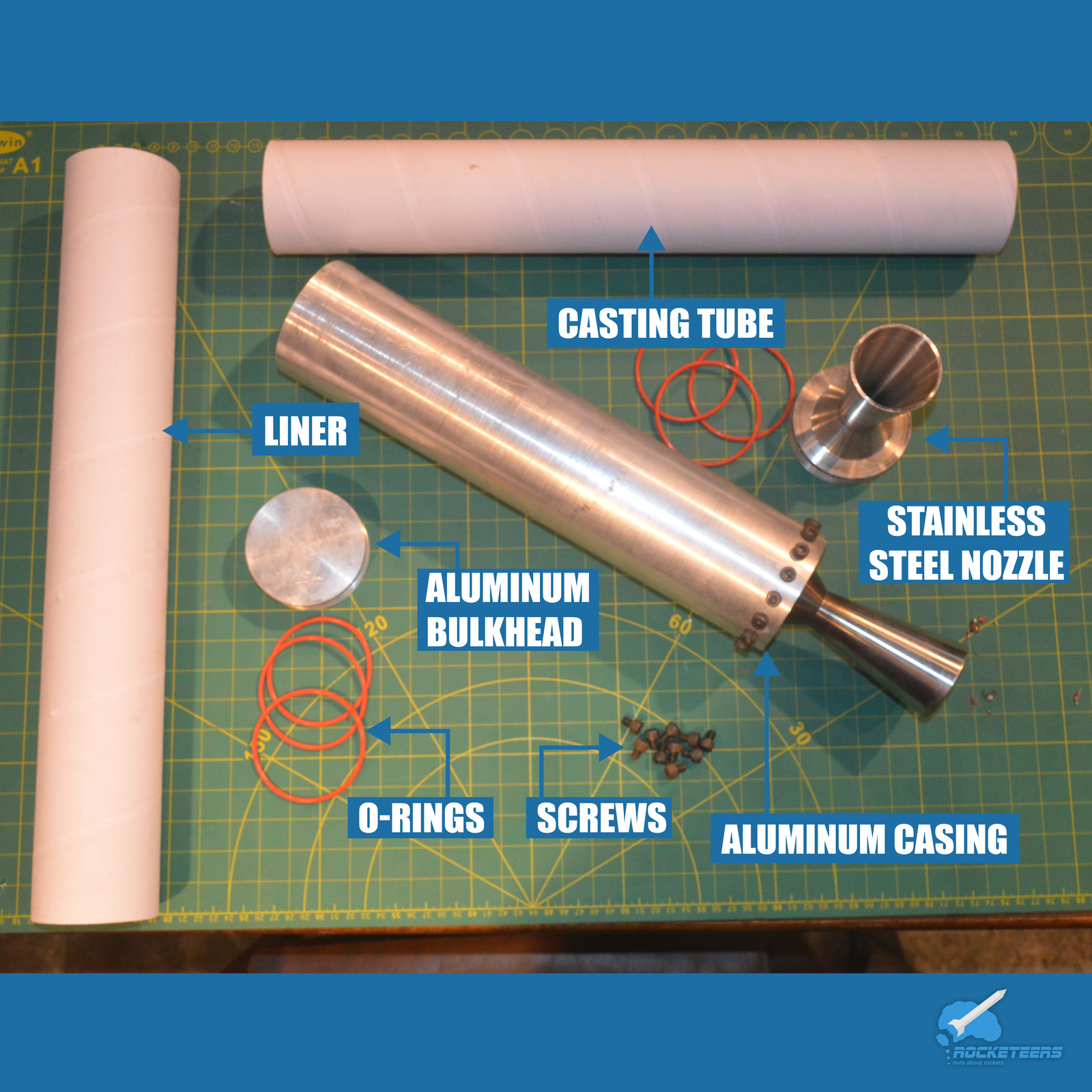

L-Class Motor (1000 - 2200 Ns)

Take your rocketry projects to the next level with our powerful precision CNC machined L Class Motor. Designed for advanced enthusiasts and professionals, this motor boasts several key features to enhance performance and reliability:

• Total Dry Weight : 1642 gms
• Full Assembly Dimensions:
  • Length - 482 mm
  • Outer Diameter - 84.8 mm

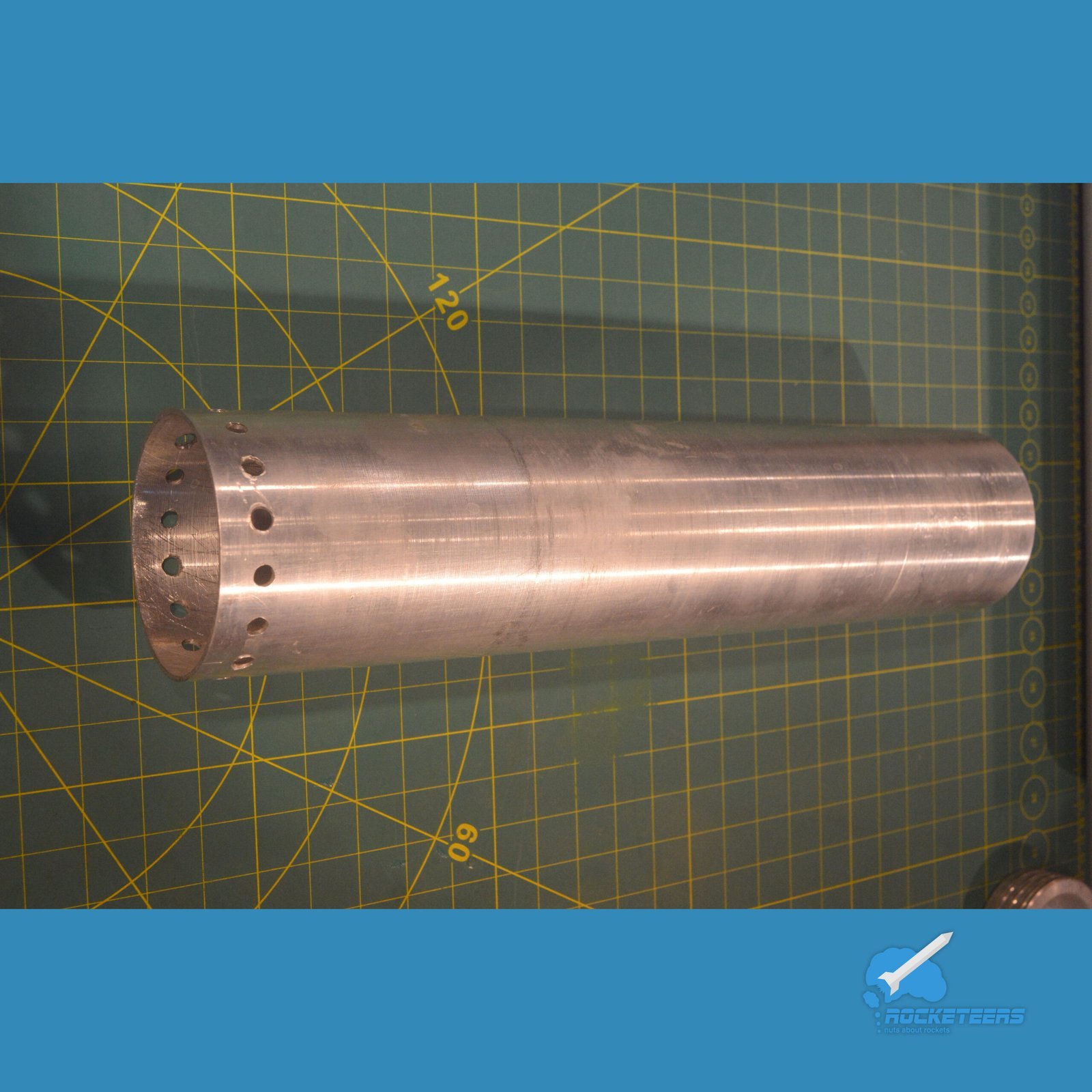

Aluminium Casing

• Specially sourced aerospace grade Aluminium alloy
• Weight : 506 gms
• Dimensions:
  • Casing length - 371 mm
  • Outer diameter - 84.8 mm
  • Inner diameter - 80.6 mm
• Includes 1 per pack

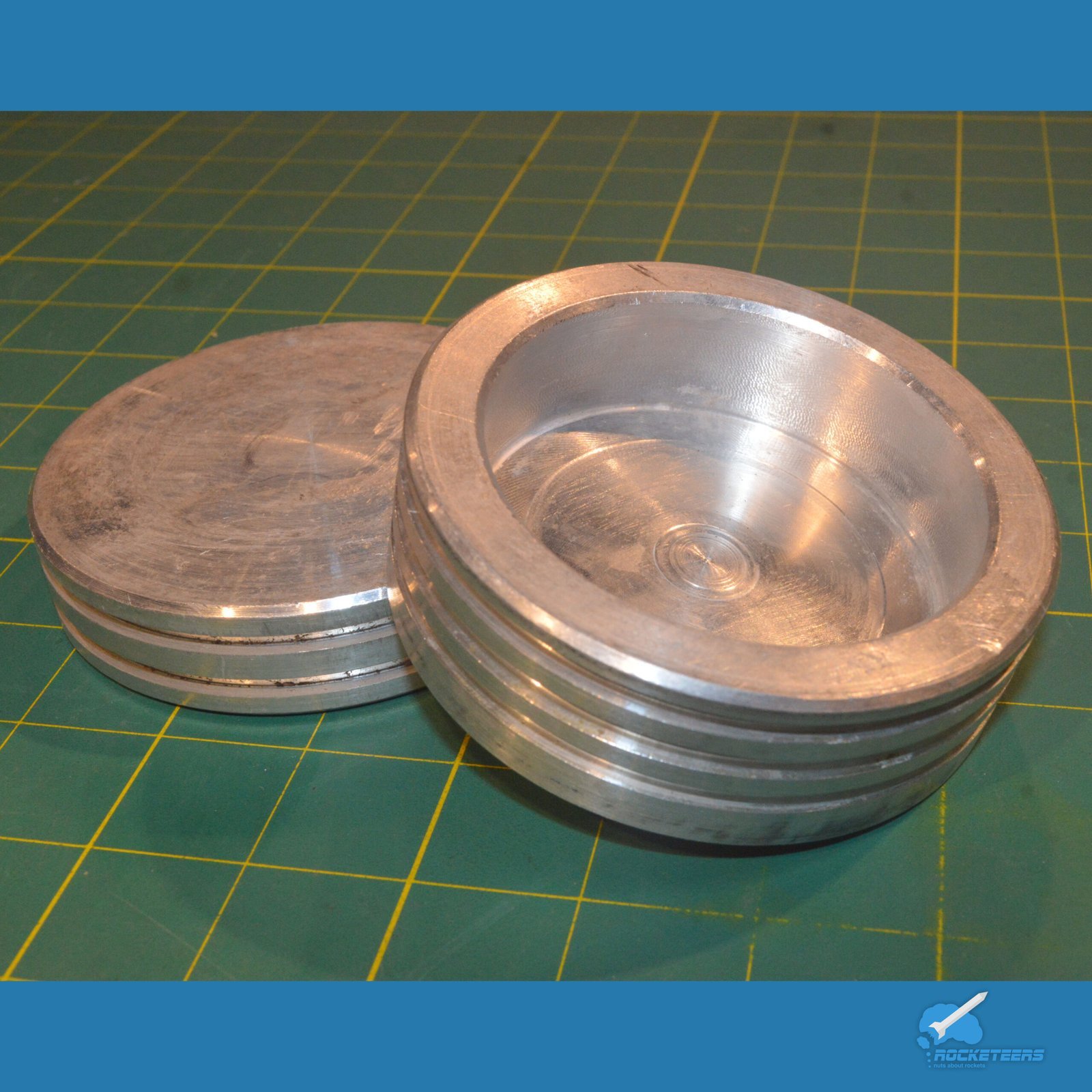

Aluminium Bulkhead

• Specially sourced aerospace grade Aluminium alloy
• Silicon O-ring hermetic seal
• Weight : 172 gms
• Dimensions:
  • Length - 25 mm
  • Diameter - 80.4 mm
• Includes 1 per pack

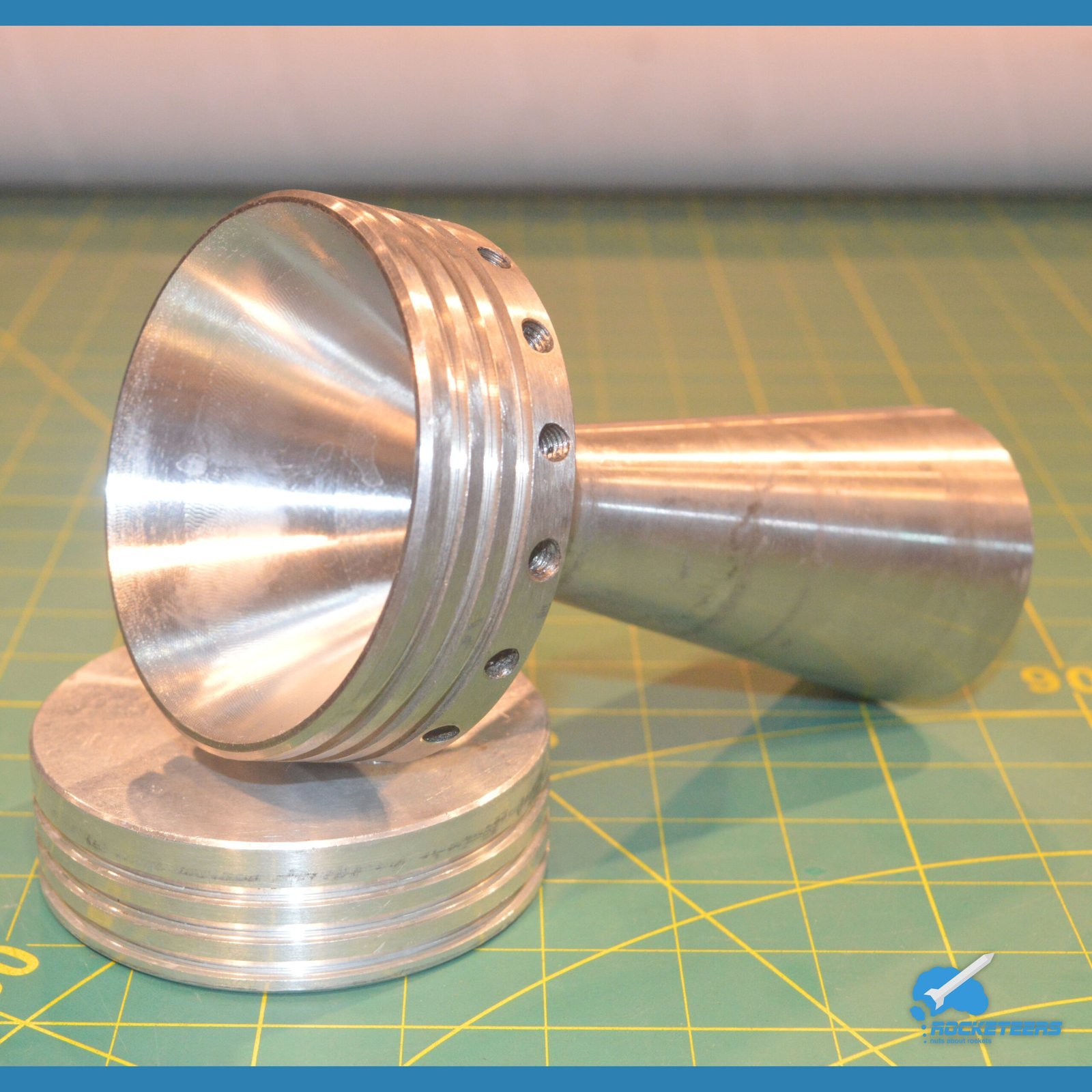

Stainless Steel Nozzle

• Specially sourced aerospace grade SS alloy
• Superior thermal performance enhances efficiency and longevity.
• Silicon O-ring hermetic seal
• Weight : 717 gms
• Dimensions:
  • Outer diameter - 80.4 mm
  • Length - 146 mm
• Includes 1 per pack

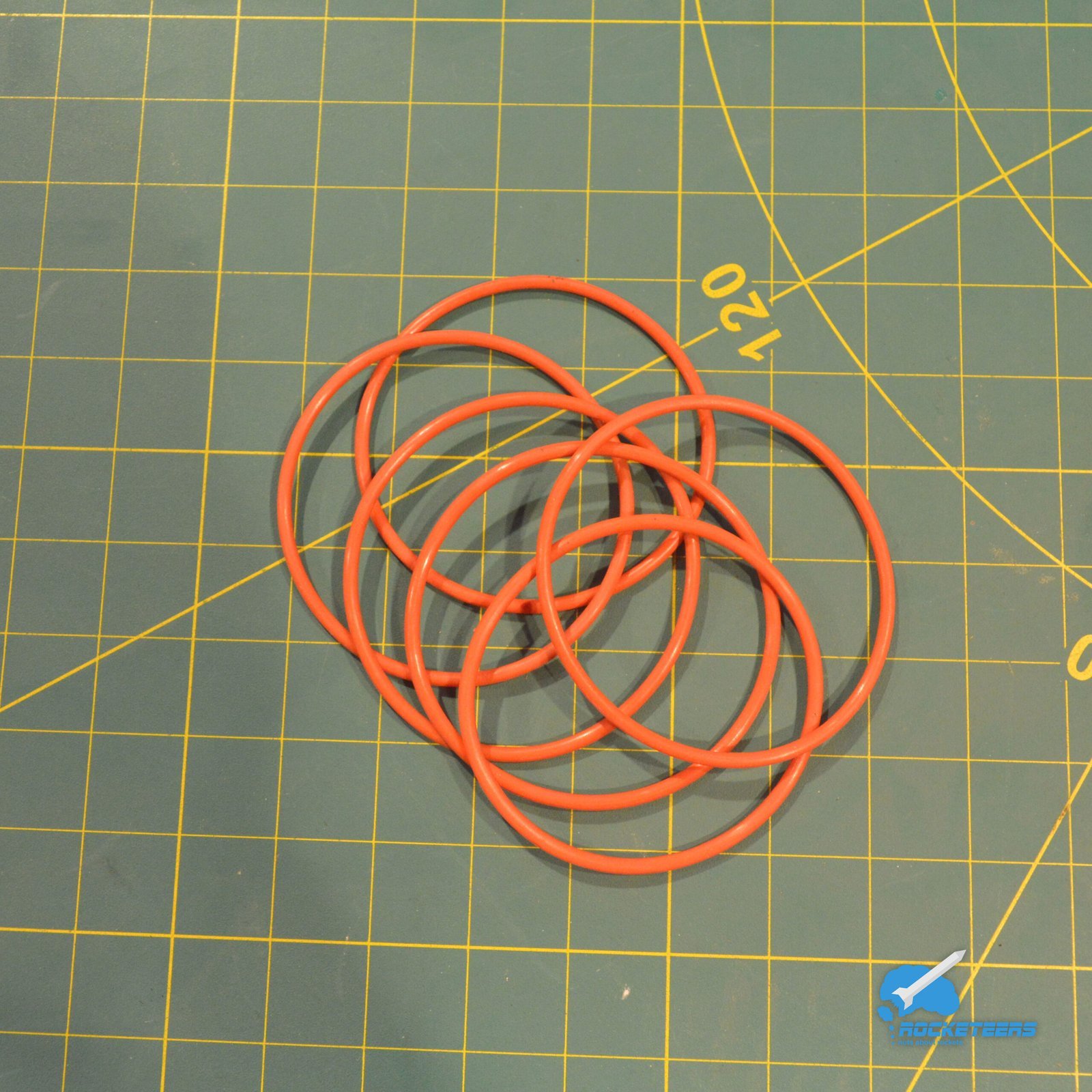

O Rings

• Weight : 11 gms
• High-Quality Silicon Hermetic Seals: Prevent gas leakage, ensuring optimal performance and safety.
• Includes 8 per pack

Screws

• Weight : 67 gms
• High tensile & high performance
• Secure Fastening: Maintains the integrity of the motor assembly under high-pressure conditions.
• Includes 20 per pack

Liner

• Weight : 125 gms
• Flame resistant resin bonded high BF Sack-Kraft tube
• Protection: Shields the motor casing from high-temperature exhaust gases, extending the motor’s lifespan.
• Includes 2 per pack

Casting Tube

• Weight : 46 gms
• Flame resistant resin bonded high BF Sack-Kraft tube
• Includes 2 per pack
